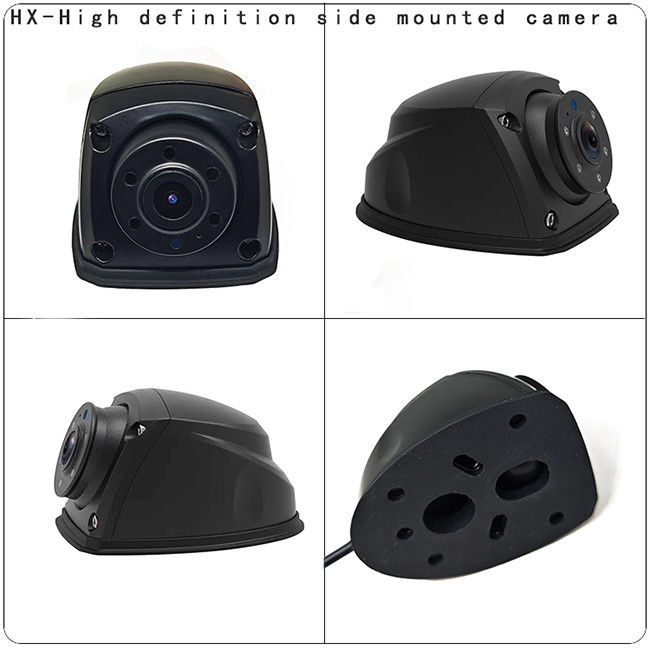

Kamera keamanan truk 8MP AHD Lampu bintang Penglihatan malam Daya rendah

Kamera keamanan truk Lampu bintang Penglihatan malam AHD Low Power Reverse Waterproof Monitoring

Setelah memasang kamera 8MP, FOV dari kamera utama yang menghadap ke depan dapat mencapai 120 ° yang mungkin tidak diperlukan lagi Jarak deteksi sekitar 60 meter

Kamera sekitar:  mainly installed around the vehicle body   usually using 4 - 8 cameras   which can be divided into forward facing fisheye camera   left facing fisheye camera   right facing fisheye camera   and rear facing fisheye camera   Used for displaying panoramic panoramic view function   as well as visual perception and object detection integrating parking function   The commonly used color matrix is RGGB   as there is a need for color restoration
Kamera penglihatan belakang: umumnya dipasang di bagasi terutama untuk bantuan parkir Sudut bidang pandang antara 120 dan 140 derajat dan jarak deteksi sekitar 50 meter
Kamera pandang depan samping:  installed at the B - pillar or vehicle rearview mirror   the field of view angle of this camera is generally 90 °  - 100 ° and the detection distance is about 80 meters  The main function of this camera is to detect lateral vehicles and bicycles
Kamera sisi dan belakang:  generally installed at the front fender of the vehicle   the field of view angle of this camera is generally around 90 °  and the detection distance is also about 80 meters   It is mainly used for scene applications such as vehicle lane changing and merging into other roads
Dibangun dalam kamera : terutama digunakan untuk memantau status pengemudi dan mencapai pengingat kelelahan dan fungsi lainnya
Among them   the price of front view cameras is relatively high   and the current market price is between 300 and 500 yuan  The prices of other cameras are around 150 - 200 yuan   Some places an ISP image processing chip on the camera side to transmit the processed signal to the host   while others do not place an ISP chip and use the built - in ISP chip on the host side for image processing   This way   the heat dissipation on the camera side will be much better and the radiation will be reduced
