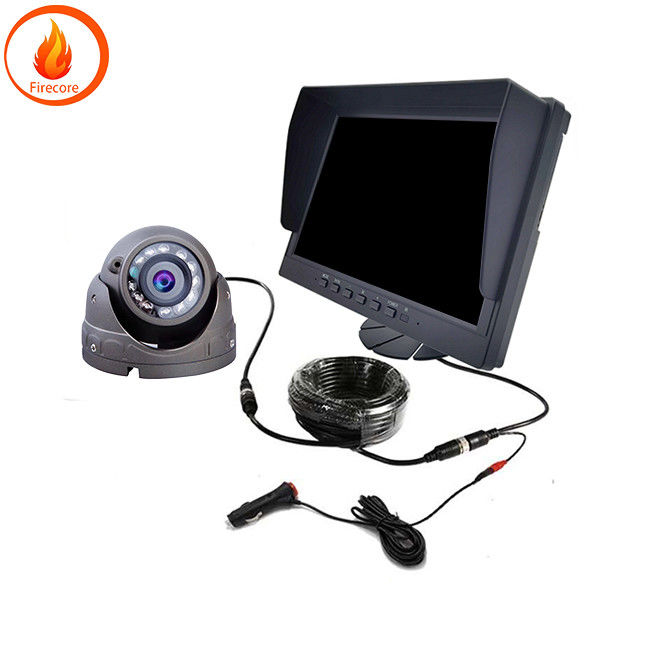

Mobil yang dipasang kamera depan 24v Truk kamera belakang monitor

Sistem Pemantauan Kamera Kendaraan Layar layar layar monitor jalan truk gambar terbalik

Distribusi kamera di mobil:
Saat ini kamera mobil yang dipasang terutama dibagi menjadi lima kategori berdasarkan lokasi instalasi mereka:kamera view depan kamera view surround kamera view belakang kamera side view kamera dan built - in kamera

Kamera depan:  mainly installed on the front windshield to achieve visual perception and recognition functions during driving   It can be divided into front view main camera    front view narrow angle camera   and front view wide angle camera according to their functions

Kamera utama menghadap ke depan:  This camera is used as the main camera in the ADAS system of L2    The field of view angles are generally 30 °  50 °    60 °   100 °    and 120 °   and the detection distance is generally 150 - 170 meters    The camera output format is RCCB or RCCC

Forward looking wide - angle camera   The main function of this camera is to recognize objects that are close in distance    mainly used in urban road conditions   low - speed driving and other scenes    Its field of view angle is between 120 ° -150 °   and the detection distance is about 50 meters   After the large - scale installation of the 8MP lens in subsequent vehicles    this camera is not needed

Kamera sudut sempit dari depan:  The main function of this camera is to recognize targets such as traffic lights and pedestrians   Generally   narrow angle lenses are used    and lenses around 30-40 ° can be selected   And the pixels of this lens are generally the same as those of the front facing main camera    The camera adopts a narrow angle     has higher pixel density and farther detection distance   and can generally detect up to 250 meters or even longer distances

Setelah memasang kamera 8MP, FOV dari kamera utama yang menghadap ke depan dapat mencapai 120 ° yang mungkin tidak diperlukan lagi Jarak deteksi sekitar 60 meter

Kamera sekitar:  mainly installed around the vehicle body   usually using 4 - 8 cameras   which can be divided into forward facing fisheye camera   left facing fisheye camera    right facing fisheye camera    and rear facing fisheye camera    Used for displaying panoramic panoramic view function    as well as visual perception and object detection integrating parking function   The commonly used color matrix is RGGB    as there is a need for color restoration

Kamera penglihatan belakang: umumnya dipasang di bagasi, terutama untuk bantuan parkir Sudut bidang pandang antara 120 dan 140 derajat dan jarak deteksi sekitar 50 meter

Kamera pandang depan samping:  installed at the B - pillar or vehicle rearview mirror    the field of view angle of this camera is generally 90 ° -100 °   and the detection distance is about 80 meters   The main function of this camera is to detect lateral vehicles and bicycles

Kamera sisi dan belakang:  generally installed at the front fender of the vehicle   the field of view angle of this camera is generally around 90 °   and the detection distance is also about 80 meters    It is mainly used for scene applications such as vehicle lane changing and merging into other roads
