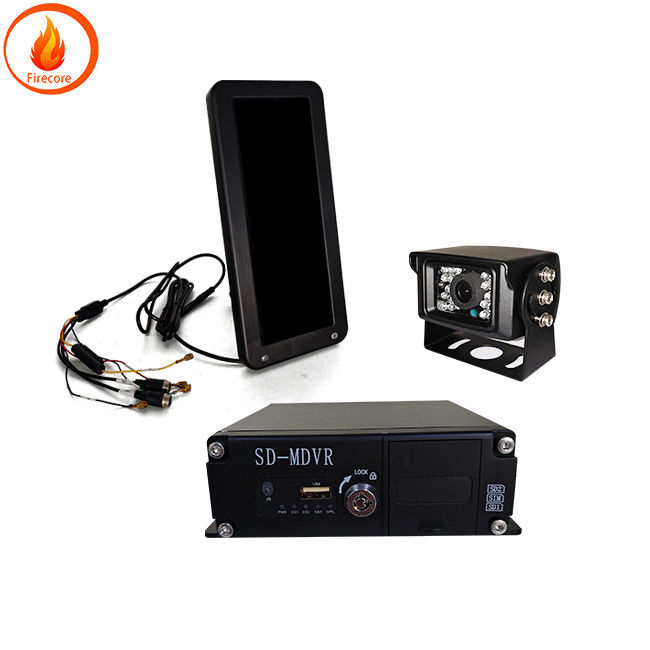

720P HD Car DVR 12.3 Inch Vehicle Display Sistem Pemantauan Onboard

Sistem pemantauan kamera kendaraan sistem pemantauan layar 12,3 inci di dalam kendaraan

Parameter produk:
Tampilan:
1. Ukuran: 12.3 " ((8): 3)
Resolusi: 1920 * 720P
3. lampu latar: LED kecerahan: 850cd / m2
4. kontras: 800: 1
5. rentang perspektif: naik 85 derajat turun 85 derajat
Sumber daya: DC9 - 36V
7. kontrol OSD: pengaturan pemutaran video pengaturan tampilan video pilihan bahasa pengaturan mundur pengaturan sistem
8, daya 5W
Masukan sinyal: 720P / 960P / 1080P / CVBS input campuran
Format file: AVI / JPG
11. Memori: Mendukung kartu TF 256GB
Kompresi video: H.264
Resolusi rekaman: 720P/960P/1080P/CVBS
Bahasa sistem: Cina Inggris
15. Layar: layar tunggal / layar ganda / 5 : 5 / 6 : 4 / 7 : 3 Operasi menampilkan CHI CH2 1080P
Kontrol pemicu: pemicu 1 arah
Format video: PAL/NTSC otomatis beralih
Kamera HD:
Resolusi: AHD 720P / 960P/1080P
Horizontal sudut lebar: 90 - 150
Kelas tahan air: IP68

Kami adalah produsen profesional penelitian dan pengembangan produksi dan pemantauan kendaraan

Perekam video mobil mobil kamera mobil kamera usb mobil layar kamera usb

Silakan hubungi kami melalui email:firecore1688@163.com

Terminal pemantauan jarak jauh yang dipasang pada kendaraan
The vehicle mounted remote monitoring terminal  also known as the vehicle mounted DVR   adopts a professional vehicle mounted design that is suitable for automotive power supply and adopts high seismic resistance design   It combines mechanical shock absorption   electronic shock absorption   and software seismic resistance patents   and uses a removable ordinary 2.5 - inch hard drive    It has multiple modes of security monitoring and recording functions   manual   timed   alarm linkage    and fast and convenient query and playback modes  The product has a high - speed USB 2.0 interface and broadband network interface   which facilitates data backup   The vehicle mounted intelligent terminal can be used independently   and can also utilize the extended built - in GPS global positioning system and 3G communication module to construct a wireless video monitoring management system for remote scheduling management and real - time monitoring   As an extended application   in car DVR can also provide functions such as mileage and station name prompts   enriching operational applications   Mileage and station name prompts   in addition to the sound station announcement function   the onboard terminal also provides visual mileage and station name prompts  displaying the progress of the vehicle on the route through the display inside the vehicle   The main functions and architecture of the software platform   The onboard monitoring terminal can independently complete the video recording and recording monitoring function on the vehicle, and can also be expanded and configured into a system with wireless network monitoring and management   improving and enhancing the regulatory ability of the management department on vehicles   and providing more timely monitoring of key areas and routes

The line resembling the head penetrates into the car through the gap of the license plate light   and is connected to the power supply and video extension cable of the reversing light   This type of installation of reversing camera is a popular one nowadays   with a more concealed appearance and easier installation  Another method is to drill holes for installation and embed them into the interior of the bumper   The advantage of this method is that there is no need to drill holes on the metal parts behind the car   Because the bumper is made of plastic   the camera wiring is relatively easy    The third step is to connect the power cord of the camera to the power cord of the rear reversing light    then connect the video cord of the camera to the video extension cable    The other end of the video extension cable is connected to the AV input of the car DVD display    Finally   restore the battery power    start the car    engage reverse gear   and you can see the reverse image on the car display
